Working with GV Node
For iControl to monitor and control a GV Node frame, the GV Node must first be added to the list of communicators in a Densité Manager.
REQUIREMENTS: |
Make sure you meet the following conditions before beginning this procedure: |
• You know the IP address of the GV Node frame. |
|
• You have started the appropriate Densité Manager service in iControl ( click HERE). |
1. In iC Navigator’s Logical view, expand the Managers folder, and then double-click the appropriate Densité Manager element.
[ Graphic ]

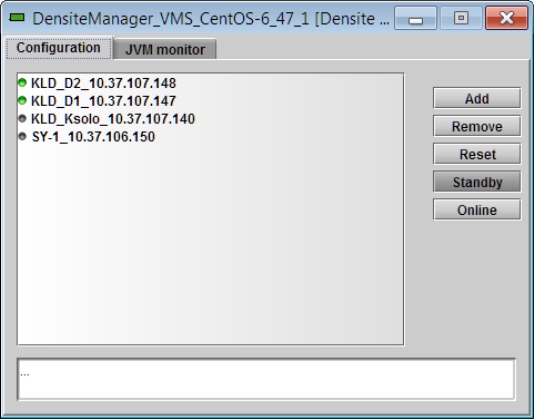

The Densité Manager control panel opens.
2. In the Densité Manager control panel, click Add.

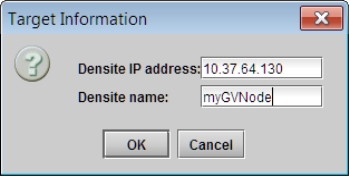

The Target Information window opens.
[ Graphic ]
3. In Target Information, type the GV Node frame’s IP address, and a name to identify the new service associated with this particular frame.
4. Click OK. The new GV Node service starts and is added to the list of Densité communicators in the selected Densité Manager control panel.
[ Graphic ]
5. Close the Densité Manager window.
The GV Node Manager control panel, and control panels for all modules housed in your GV Node frame are now available in iC Navigator.
[ Graphic ]
Logical view (partial) showing GV Node Manager, Frame Controller, and Frame Reference (other modules, e.g., IFM-2T, XIO-4901, KMX-4911 are not shown).
