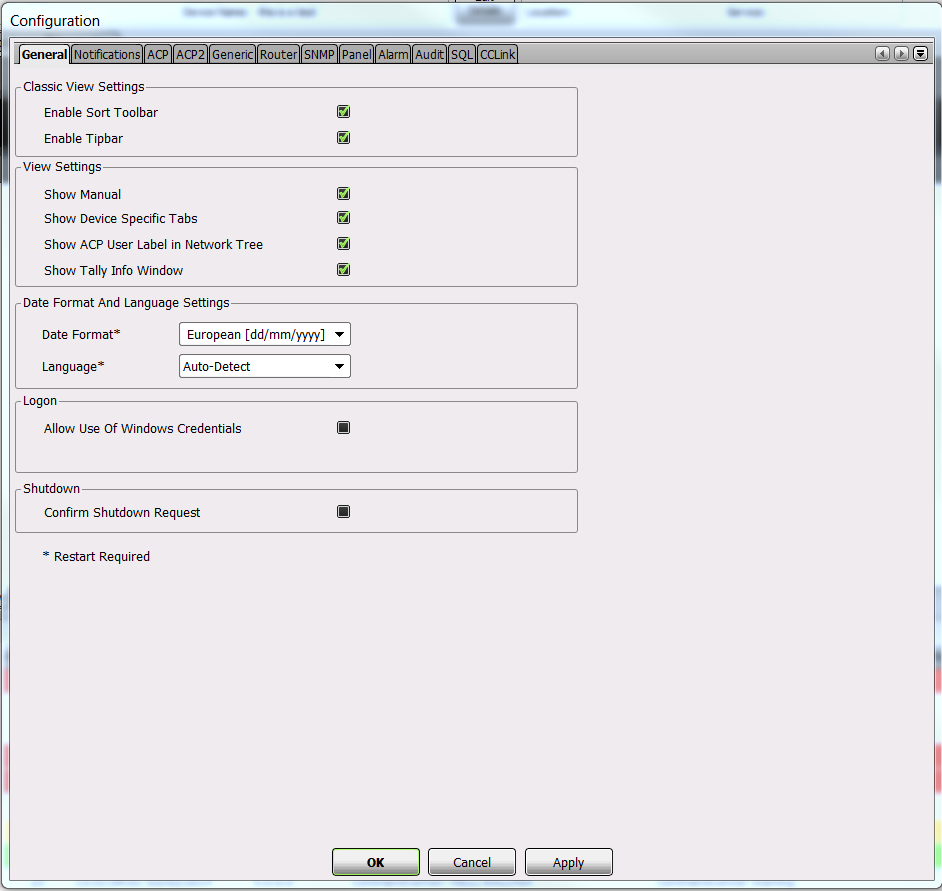

Configuring the General Dialog

This tab of the configuration dialog defines options for the user interface and some general settingss.

  • Select Configuration> CommandCenter Configuration. The Configuration dialog displays.

Enable Sort Toolbar

At the top of the Classic View list, a sort toolbar is shown. This can be disabled to give more vertical space for the list if not required.

Enable Tipbar

At the bottom of the Classic view list, details of the currently selected item can be shown. Un-checking this option will hide this data if not required.

Show Manual

The Manual page in the Control view is optional and can be disabled. This is sometimes desirable when an older version of Adobe Reader is installed as this causes some issues when selecting between cards.

Show Device Specific Tabs

This allows the Control and Monitoring tabs to be disabled, when doing so only the Classic View will be displayed for the cards. This can be used if there is a problem with the creation/use of the these tabs for a specific device and control of this device is required via the classic view.

Show ACP User Label in Network Tree

The label displayed in the Network tree can either come from the ACP card or from the Cortex SQL database. As the ACP string objects only support 8 bit characters, multi-byte dependent languages like Chinese or Arabic are not supported. Un-checking this option will show the User name defined in the SQL database.

Show Tally Info Window

This selection allows the Tally Info window to display.

Date Format and Language Settings

The date format shown in the Event grids can be displayed in one of three formats, either European (dd/mm/yyyy), American (mm/dd/yyyy), or ISO-8601 (yyyy-mm-dd).

Language

The default is Auto-detect.

Logon

When this option is enabled CommandCenter will look up the currently logged on user within Windows and attempt to match the user name against the CommandCenter user database. If there is a match then the user will be logged in automatically without having to login.

Shutdown

Enable the confirm shutdown request option to be prompted when you choose to shutdowm CommandCenter.
