Adding Hardware Panels

You add hardware panels in CommandCenter in the Network menu in System View.

1. From the View menu, select System View.

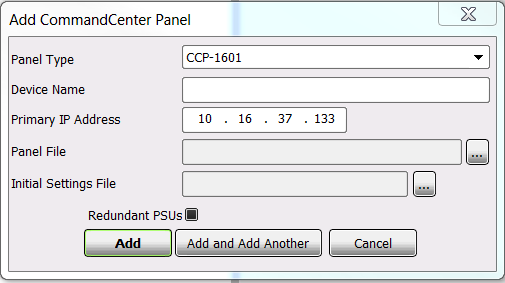

2. From the Network menu, select Add Network Device>Add CommandCenter panel. The Add CommandCenter panel displays.



3. Select the Panel Type
4. Enter the Device Name.
5. Enter the Primary IP Address.
6. (Optional) Add the panel file by browsing to the location and adding it to the system. You create CPF files in CommandCenter Designer using a template and creating a form. You then add functionality to the panel. There are two ways to do this: you can do it through Update Editor, or you may use System View to "drag and drop" functionality onto the buttons from the devices in the system.
7. Browse and add the initial settings file.
8. Check Redundant PSUs if the panel has redundant power supplies that you want to enable.
9. Click Add.
