Configuring GPIO

Use the GPIO feature to add connections to the system. A GPIO has 48 inputs and 48 outputs and each can be used indepedently.

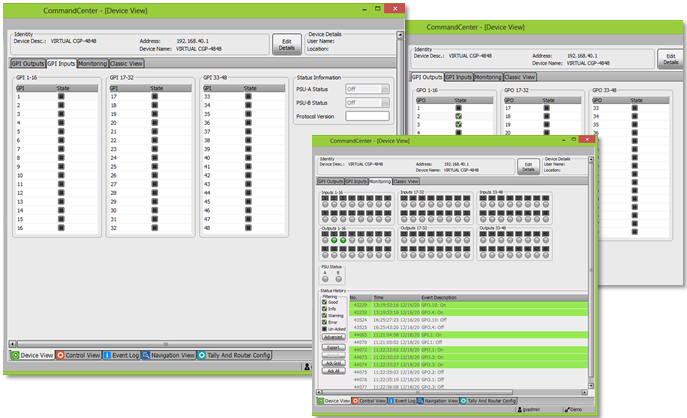

  1. From Device view, select the GPI Inputs tab. Make any required changes.
  2. From Device view, select the GPI Outputs tab. Make any required changes..
  3. Select the Monitoring tab to view the Status of the device and an error log.
