Configuring Source Tallies

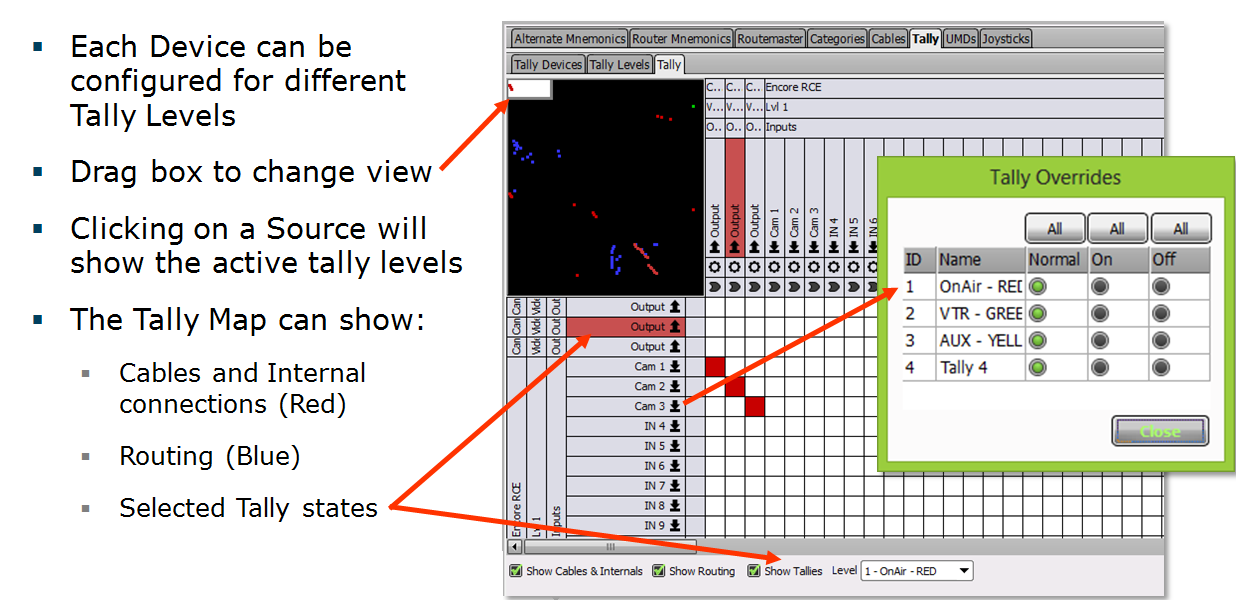

Configure source tallies from the Global Tally Map screen. Each device can be configured for different t ally levels.
- From the View menu, select Tally and Router, the Tally and Router Configuration screen displays. Select the Tally tab and then Tally to access the Global Tally Map screen.
- Clicking on a source will show the active tally levels. You may change the tally levels.
-
The Tally Map can show:
- Cables and Internal connections (displays as red)
- Routing (displays as blue)
- Selected Tally states
