Modifying Logging Suites and Button Panels

  1. Do one of the following:
    • To modify the Logging Suite, drag the Logging Suite icon on the Logging Suite into the Inspector.
    • To modify the Button Panel, do one of the following:
      • Drag the Button Panel icon into the Inspector.
      • Right-click on a button in the Button Panel and select Edit Panel Properties.

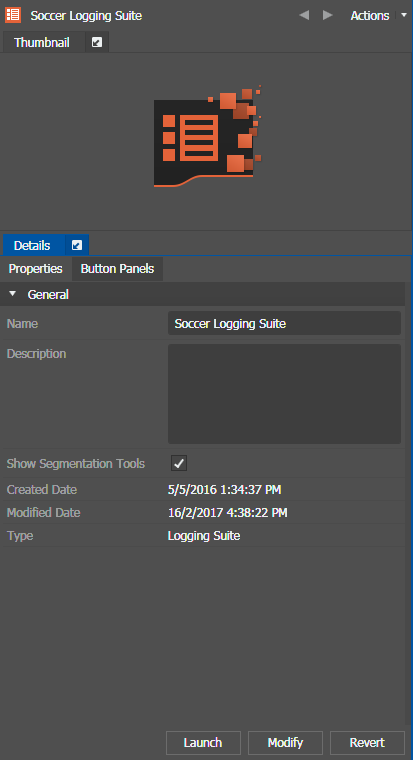

    The properties load into the Inspector.

  2. Rename the Logging Suite or the Button Panel.

    You can also change the description if desired.

  3. If assigned with the Segmentation role. you can select the Show Segmentation Tools checkbox to add a Segmentation panel to your logging suite.

    When launched, the Segmentation panel opens in a new tab next to the Source Viewer. You can undock the panel and drag to reposition it anywhere in the GV STRATUS application.

    Note: Any Advanced Logging panels docked outside of the logging suite get tabbed within the suite again after closing and reopening the suite.
  4. Select or deselect check boxes on the next tab to choose Button Panels for your Logging Suite, or choose logging buttons for your Button Panel.
  5. Click Modify to save your changes.
  6. Click Revert if you want to undo the change.
  7. Click Launch to open the modified Logging Suite or Button Panel.
