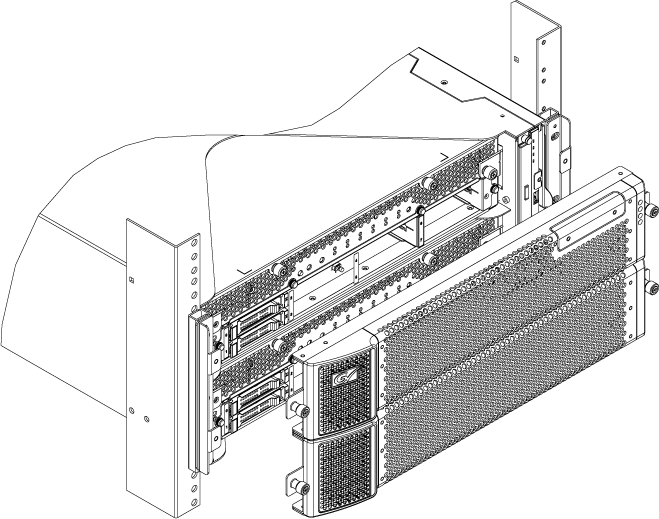

Install or remove front bezel

When your system is up and operating normally, install the front bezel. Mount it on the front of the unit and turn the thumb screws on both sides to the right.

You may remove the front bezel while the unit is powered up to check LED status.

To remove the front bezel:

  1. Unscrew the two thumb screws on either side of the front bezel.

  2. Remove the front bezel carefully and set in a protected location to prevent damage.
    Note: Keep the front bezel installed on the unit during normal operation.
