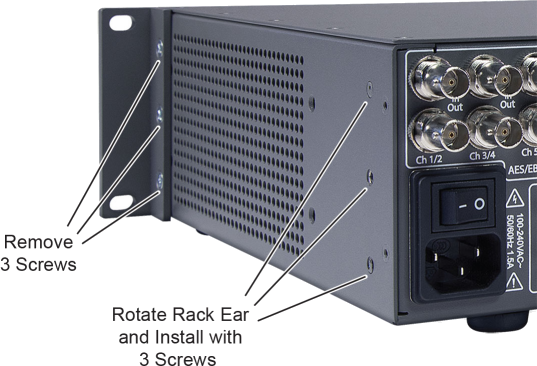

If desired, reverse the rack ears on each side of the frame so
that the connectors face the front of the rack, as illustrated.
If the frame is installed immediately above other equipment in
the rack, remove the rubber feet on the bottom of the frame for clearance if
necessary.
Identify the rack space in which to install the frame.
Do not obstruct the side vents, and allow sufficient space within the
equipment rack for airflow to and from the sides of the frame.

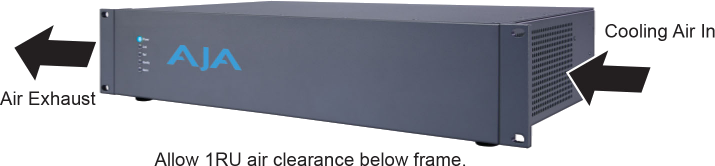

Internal air flow is directed by fans through the
signal processing frame. From the front (LED indicator side) of the frame, the
air flow direction is from right to left
