Opening DynoZoom

The DynoZoom tool displays the Post-Roll on progress bar when enabled. When selecting Highlights, the DynoZoom tool shows Marks instead of Keyframes, if Dyno is in Monitor mode instead of DynoZoom mode (when Pan and Zoom is disabled). You can change the zoom scale while pressing the LiveZoom screen.

To target an object, you can use the cross-hair that is in the middle of both the "on-air" rectangle and the "pre-set" rectangle.

You can change the zoom scale with the Tbar while pressing the LiveZoom screen. You click on the box on the screen and use the Tbar to zoom in or out.

The add invert option is available for Tbar zoom. This option is available in Tools>Setup configuration. Add invert allows you to have the highest percent of zoom (100) at the topc of the Tbar and the lowest percent (0) of zoom at the bottom of the Tbar.

You can change the zoom scale with the Tbar while pressing the LiveZoom screen.

On the K2 Dyno S Replay Controller, connect to the DynoZoom K2 Summit system, if not already paired.
Configure a new session with the DynoZoom K2 Summit system.
Select TOOLS.
Double-tap DynoZoom. The DynoZoom tool opens.
Select the operational mode as follows:

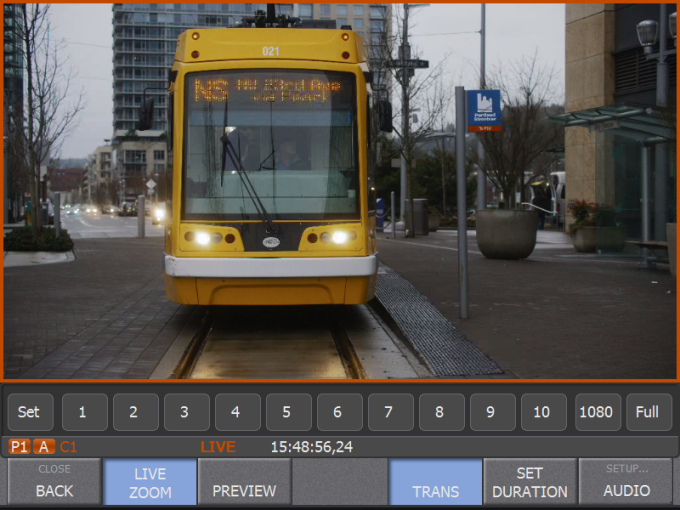

1. Select LIVE ZOOM to enter Live Zoom mode.
  In Live Zoom mode you can manipulate the Region Of Interest (ROI), with pan transitions and preview, on the live record train.

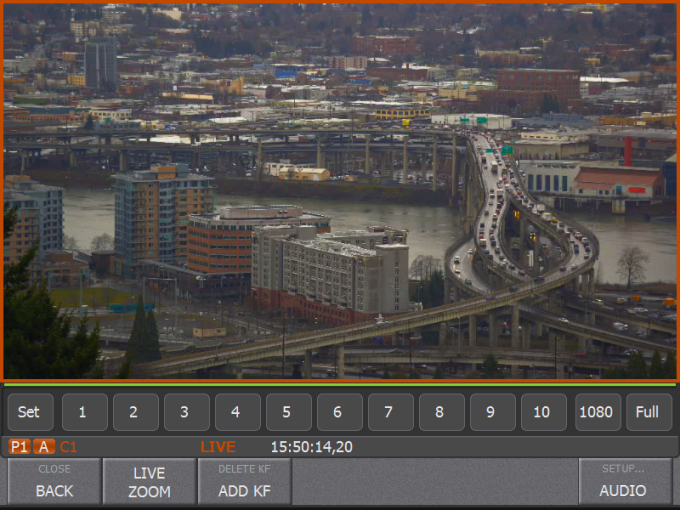

2. Once in Live Zoom mode, select LIVE ZOOM to toggle into Keyframe mode.
  In Keyframe mode you can add keyframes to the live record train or to highlights/playlists.

While the DynoZoom tool is remains open, selecting TOOLS opens directly to the tool.
